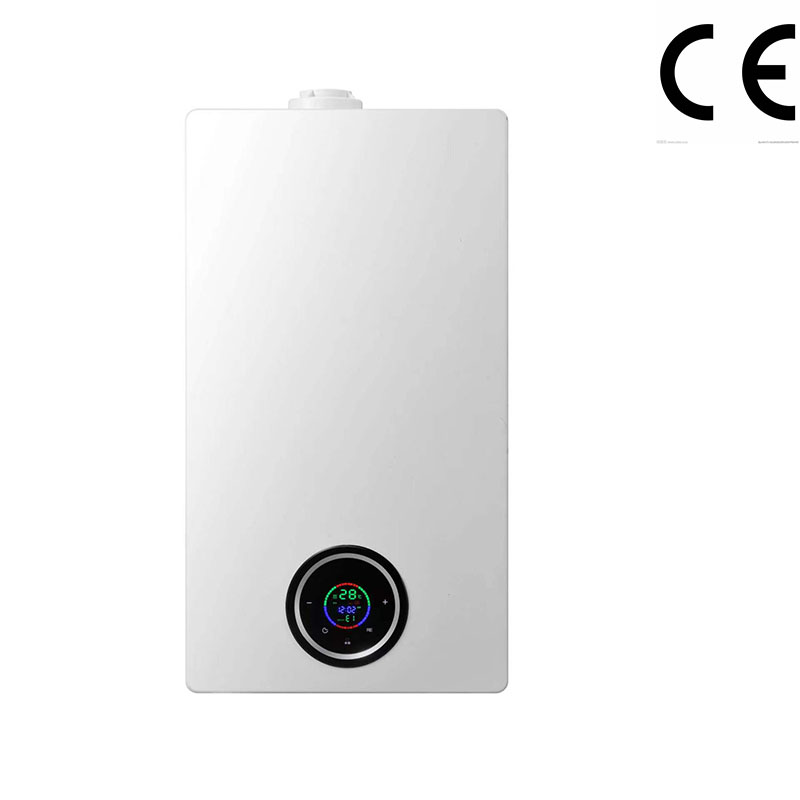

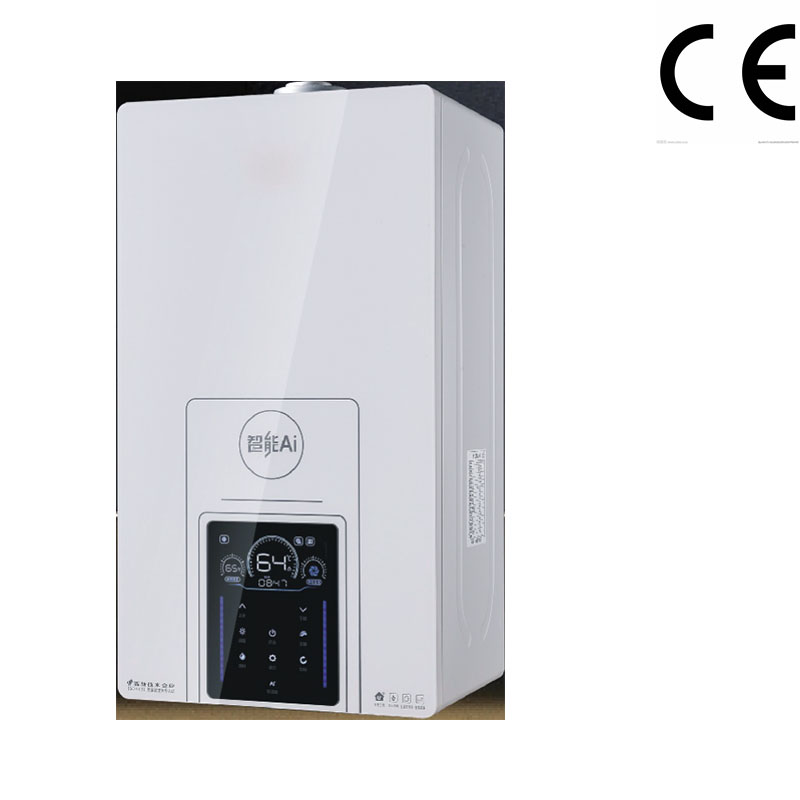

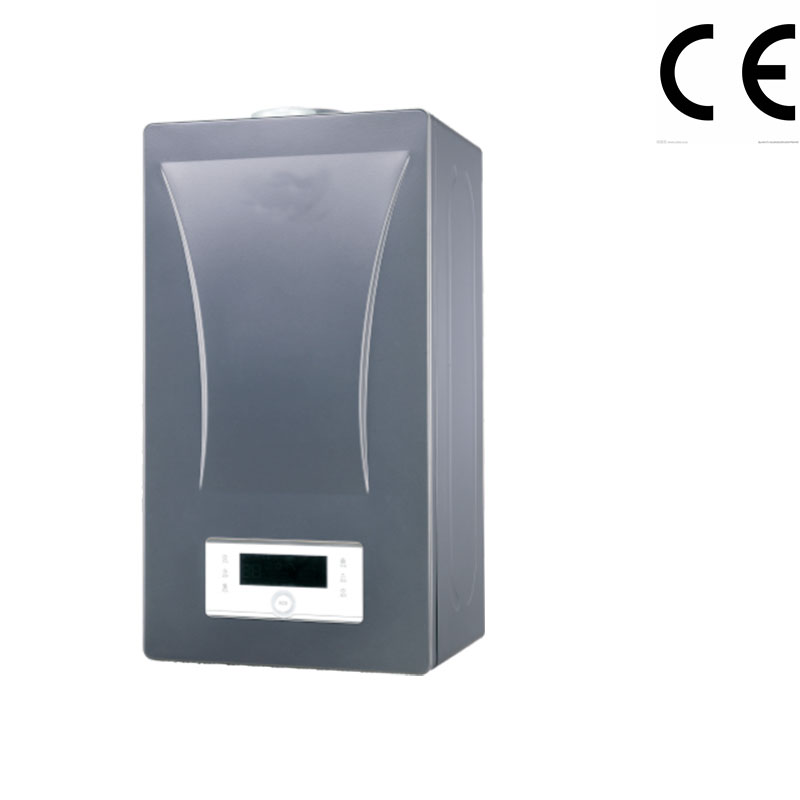

GASTEK 20kW 24kW 28kW Boiler berbahan bakar gas kanthi kaluwihan sirkuit ganda●Nomer sertifikat CE: GB 008251 001●Efisiensi panas: >90%●24 jam pengawasan lan fungsi ECO kanggo nyimpen gas● Noise Kerja<45dB●Tegangan mlaku kurang saka 120V.● Tekanan banyu wiwitan kurang saka 0,25bar.
20kW 24kW 28kW Gas-fired Boiler karo sirkuit pindho Fitur:
● Kisaran area pemanasan: 60-220m2
● Kisaran output banyu panas: 10-14 Lts / min
●Kisaran daya: 20,24,28kW
● Multiple pangayoman
Sirkuit Ganda Bersertifikat CE 20kW 24kW 28kW Parameter Teknis Boiler Berbahan Bakar Gas:
| Model No | Unit | L1PB20-ZD01 | L1PB24-ZD01 | L1PB28-ZD01 |

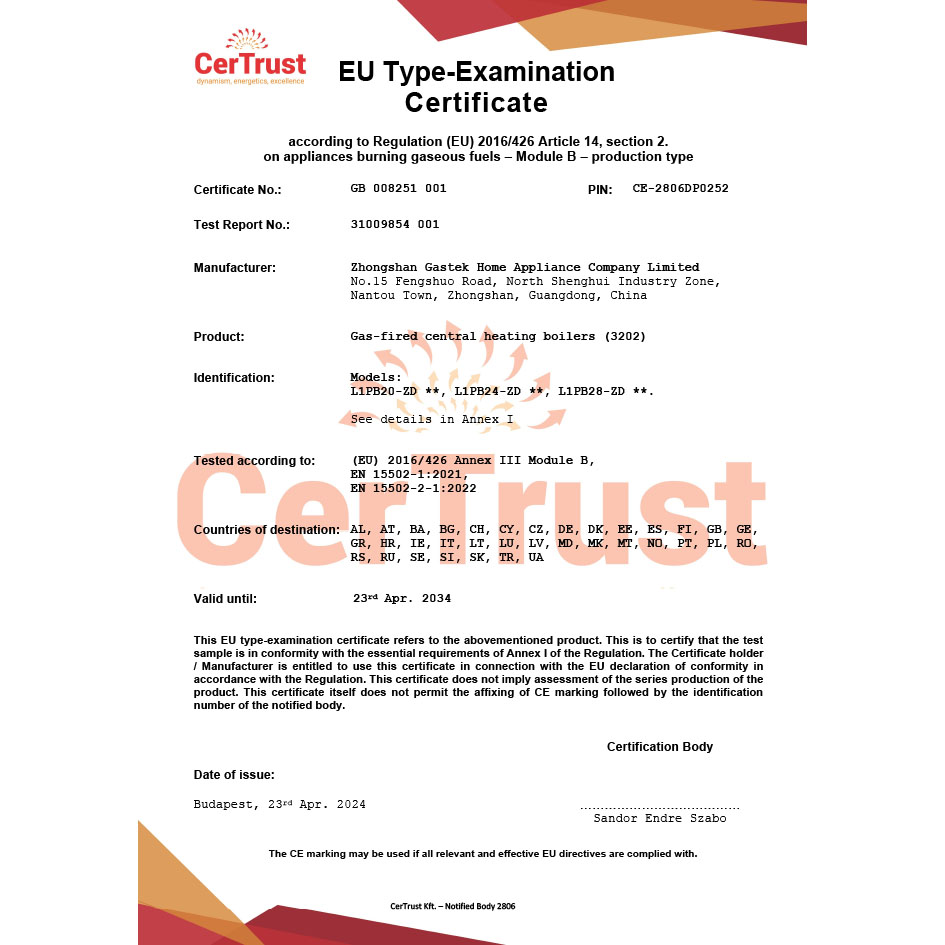

| Sertifikat CE No | GB 008251 001 | |||
| Daya termal sing dirating | KW | 20.0 | 24.0 | 28.0 |
| Input panas minimal | KW | 11.0 | 11.0 | 11.5 |
| Output panas minimal | KW | 17.8 | 21.4 | 25.0 |
| Output panas minimal | KW | 9.8 | 9.8 | 10.2 |
| Tipe gas-G20 | saka | |||
| Range tekanan gas terukur | Pa | 1000-3000 | ||
| Konsumsi gas maksimal ing mode pemanasan (G20) | m3/jam | 2.1 | 2.6 | 2.8 |
| Konsumsi gas maksimum ing mode DHW (G20) | m3/jam | 2.1 | 2.6 | 2.8 |
| Efisiensi ing daya termal sing dirating | % | > 89 | > 89 | > 89 |
| Tegangan | AC 220V, 50Hz | |||
| Konsumsi daya | W | 130.0 | ||
| Proteksi Kelas IP | X4D | |||
| Kisaran kontrol suhu pemanasan | ℃ | 30~80 | ||
| Area Pemanasan | m2 | 100 | 150 | 200 |
| Tekanan banyu sing ditrapake ing mode pemanasan | bar | 1-3 | ||
| DHW kisaran kontrol suhu | ℃ | 30-60 | ||
| Kapasitas banyu panas sing dirating (Δt = 25K) | L | 10.0 | 12.0 | 13.9 |
| Tekanan banyu sing ditrapake ing mode DHW | bar | 0.5-6 | ||
| Angkat pompa | m | 5.0 | 6.0 | 7.0 |
| Kapasitas tangki ekspansi | L | 5.0 | 5.0 | 6.0 |
| Pipa inlet banyu adhem | inch | G3/4 | ||
| Pipa outlet banyu panas | inch | G1/2 | ||
| Pipa inlet gas | inch | G3/4 | ||
| Diameter pipa koaksial baja tahan karat | mm | 60/100 | ||
| pipa coaxial Dawane | mm | 1000 | ||
| Bobot net / Bobot reged | kg | 26.5/29.5 | 27.5/30.5 | 30/32 |
| Ukuran awak | mm | 710 * 420 * 240 mm | ||
| Packing ukuran | mm | 830 * 480 * 320 mm | ||
| Kapasitas muatan (20'GP) | pcs | 170 | 170 | 170 |
| Kapasitas muatan (40'HQ) | pcs | 430 | 430 | 430 |
