Pemanas banyu gas jenis 10L umum iki bisa nyedhiyakake banyu panas sing tanpa teles, telas. Tembok dipasang, kanthi ukuran kompak, gampang diinstal. Kanthi perlindungan flameout, perlindungan kegagalan Ignition, perlindungan anti-pembekuan, nglindhungi pemanasan, lan sapiturute bisa njamin keamanan kulawarga.

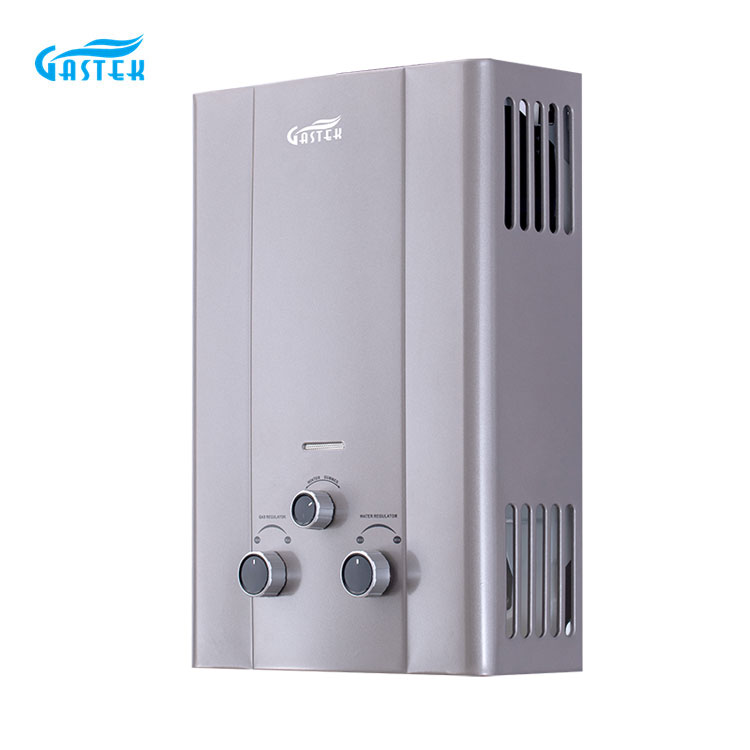

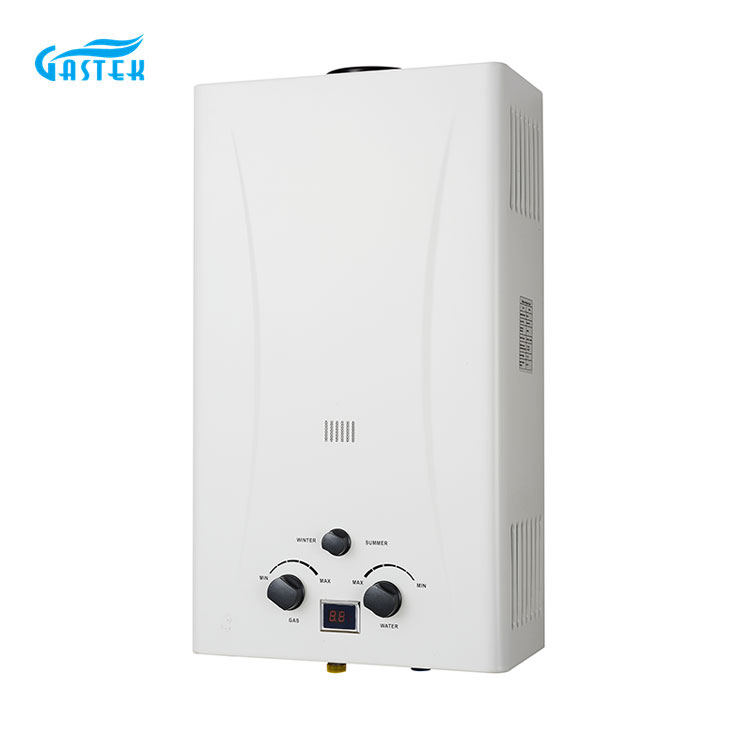

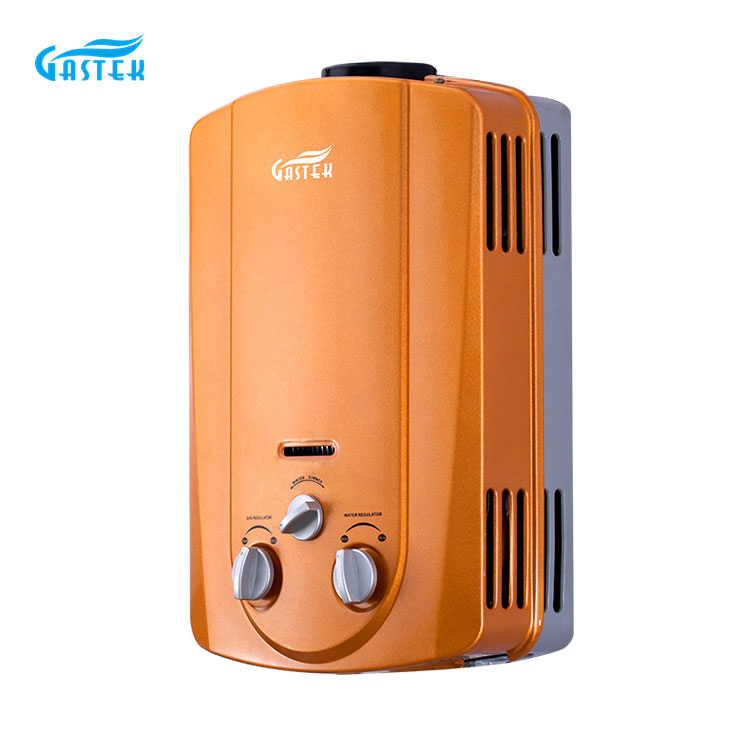

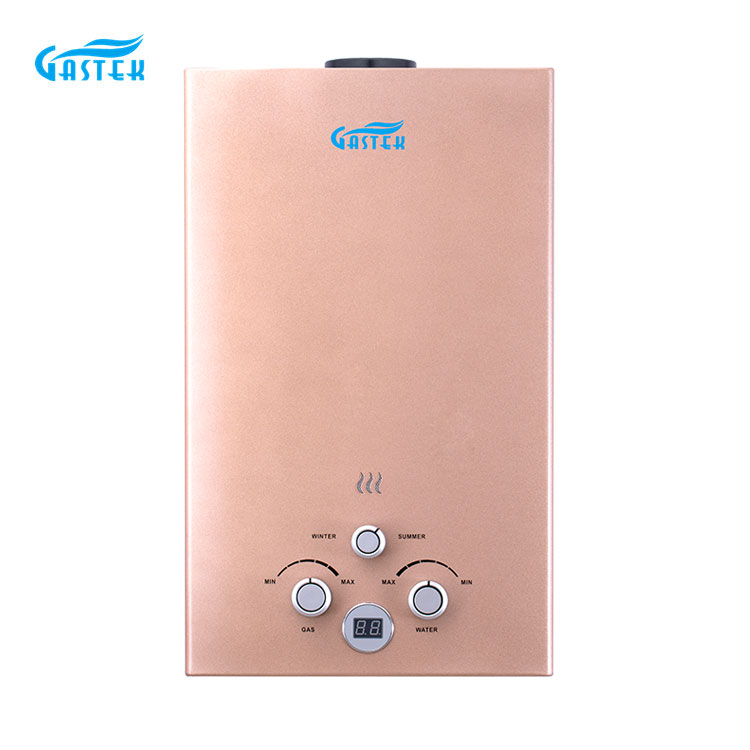

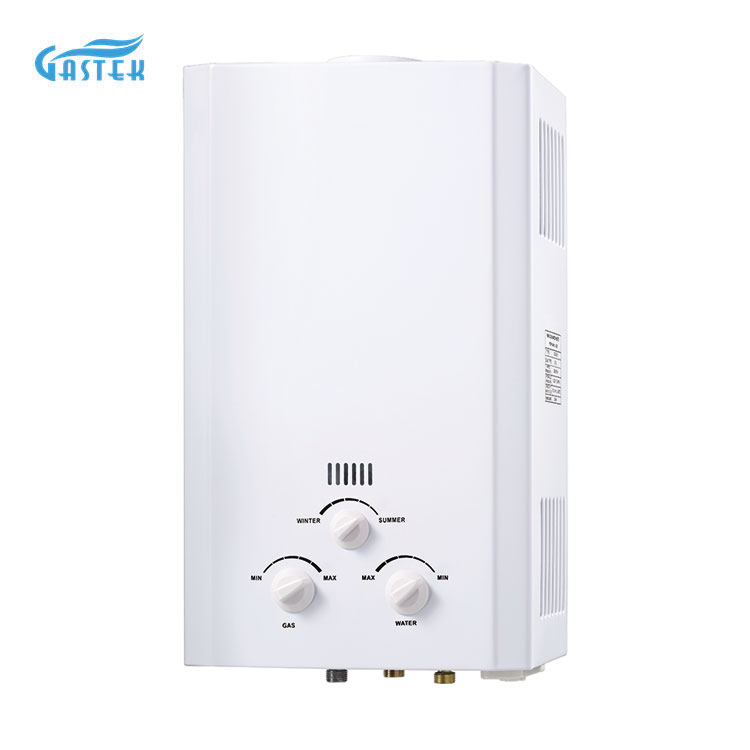

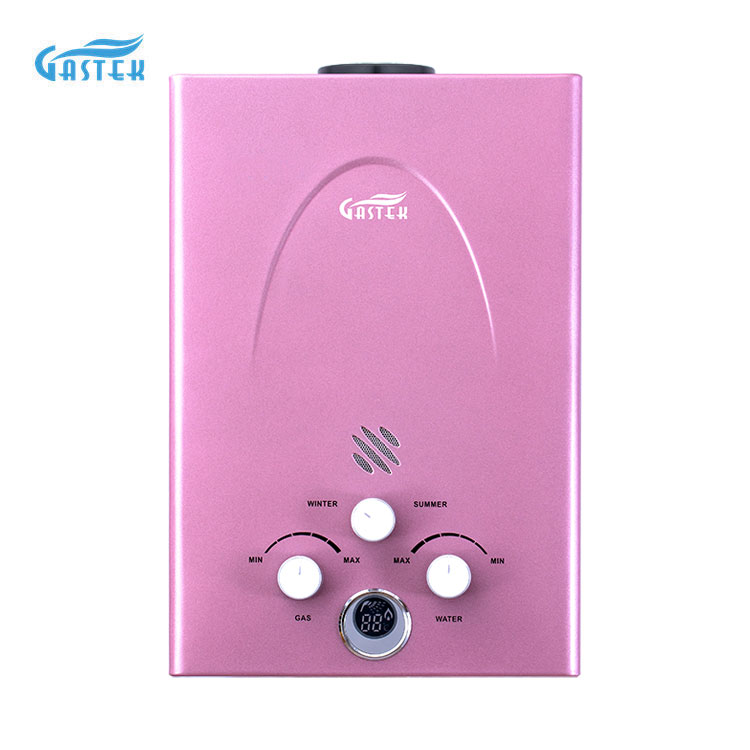

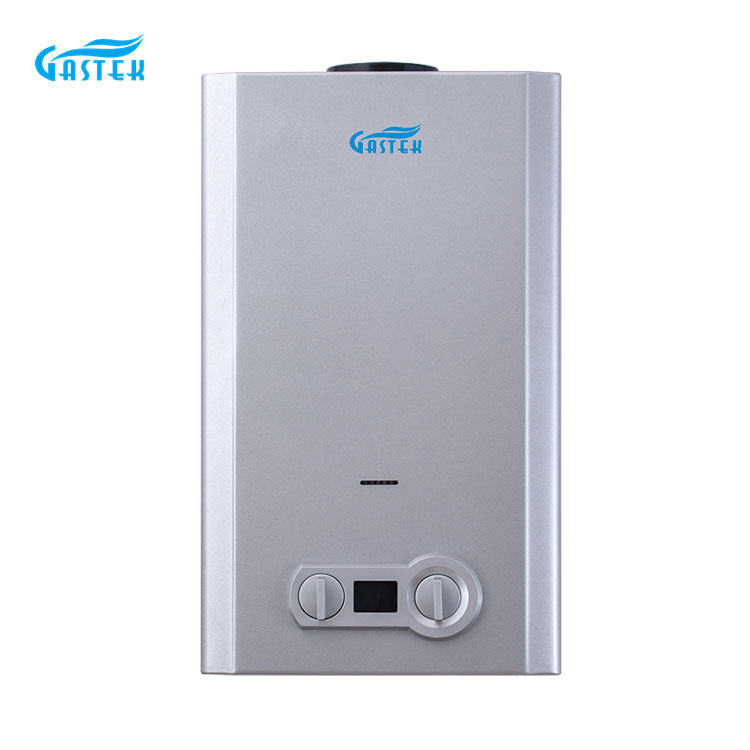

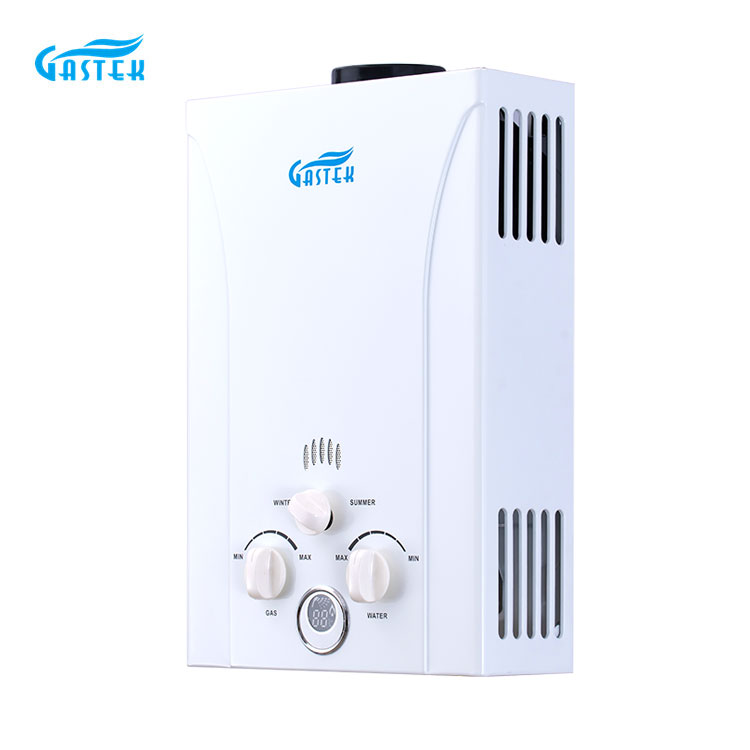

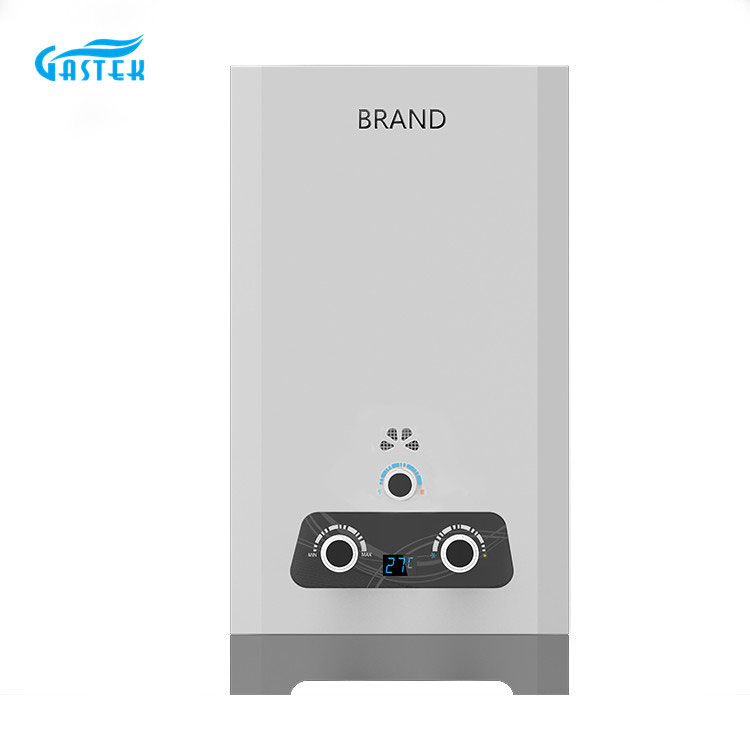

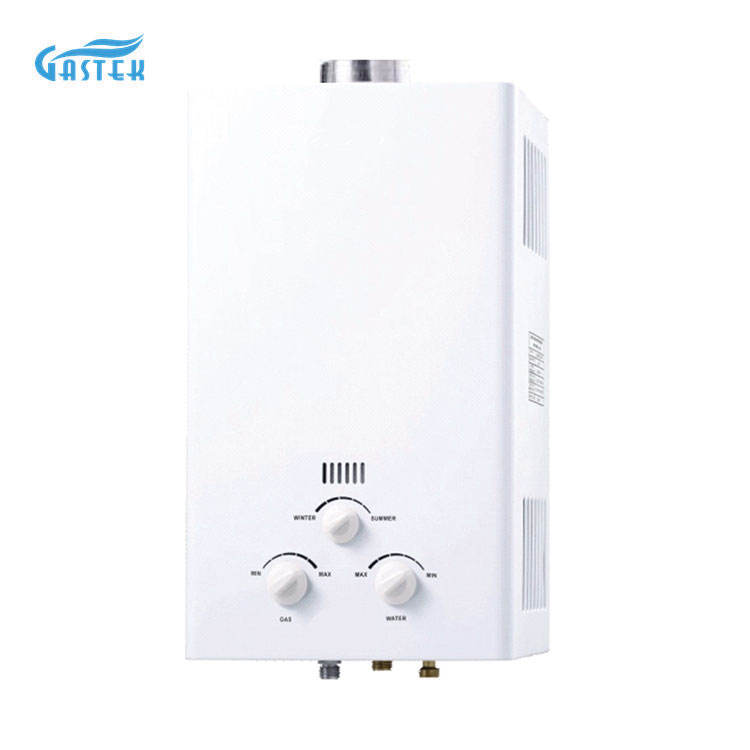

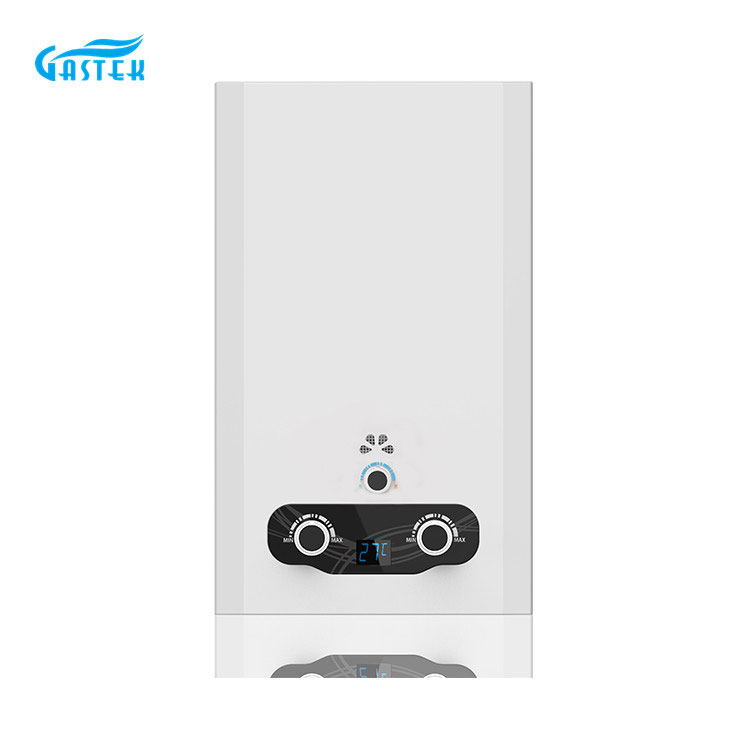

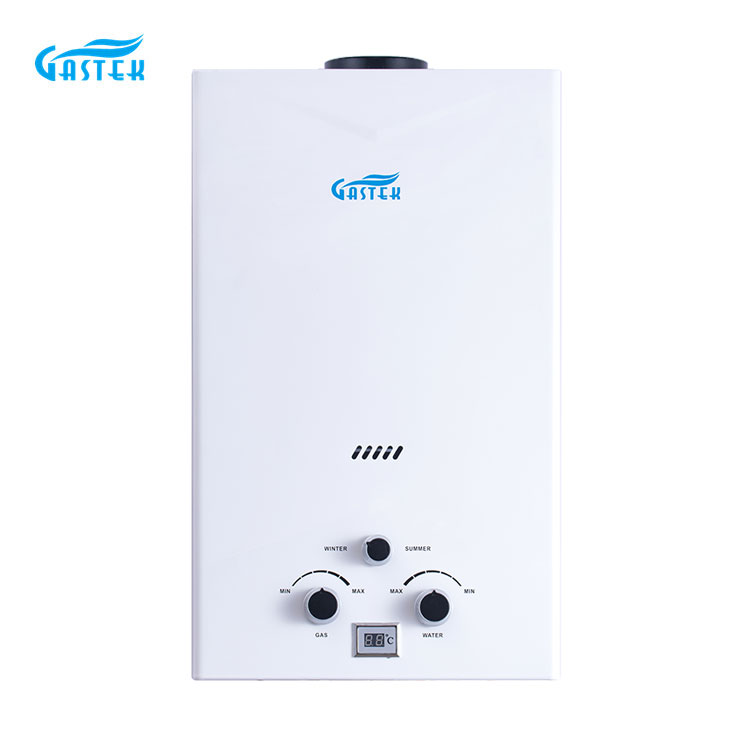

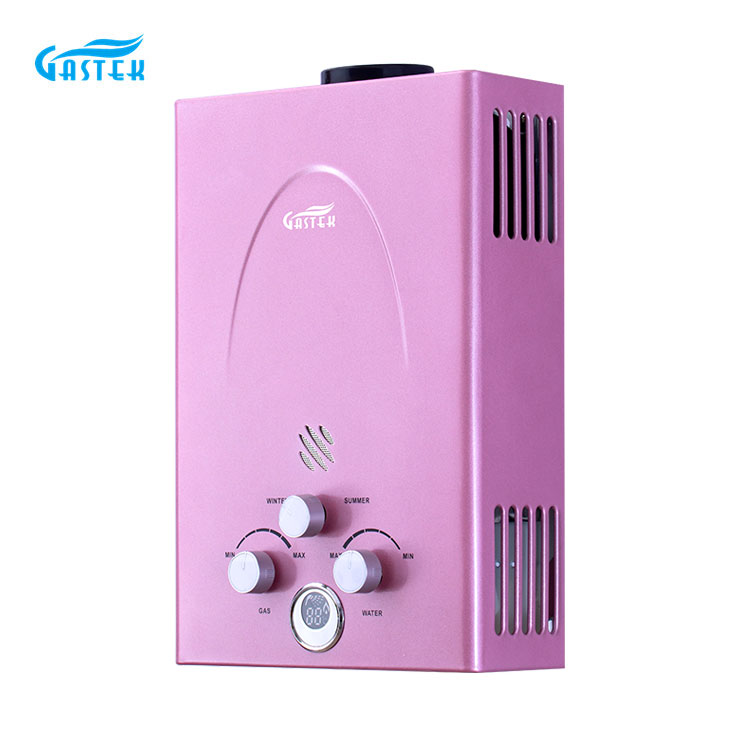

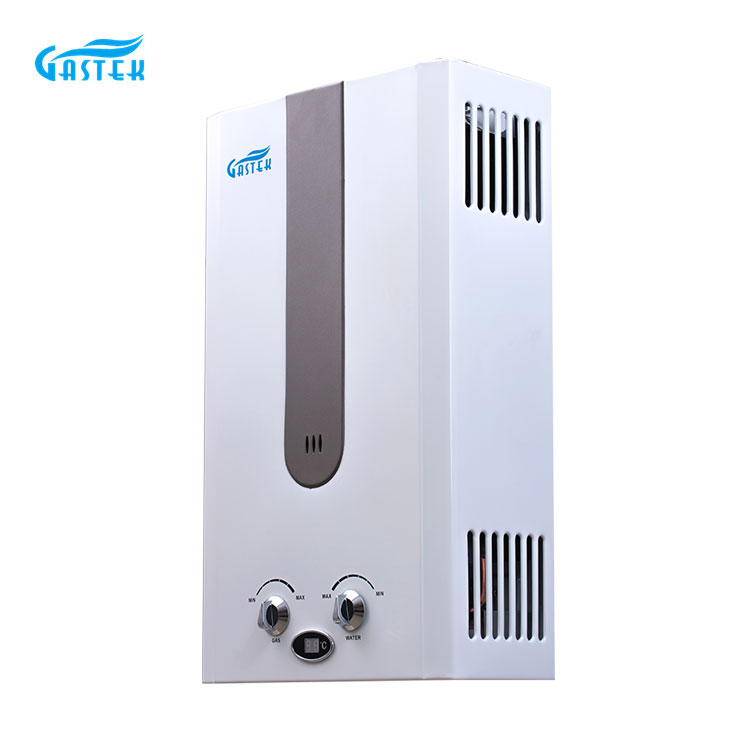

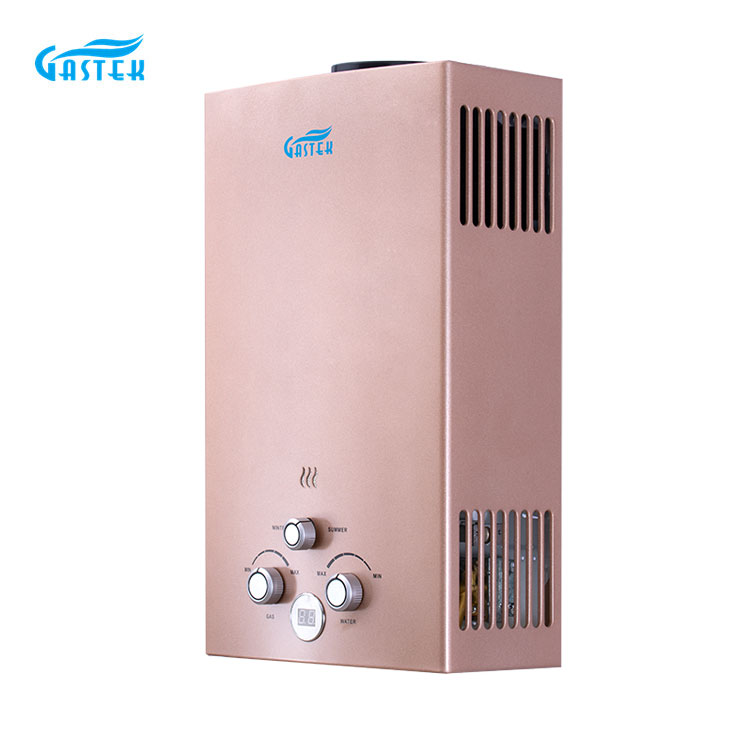

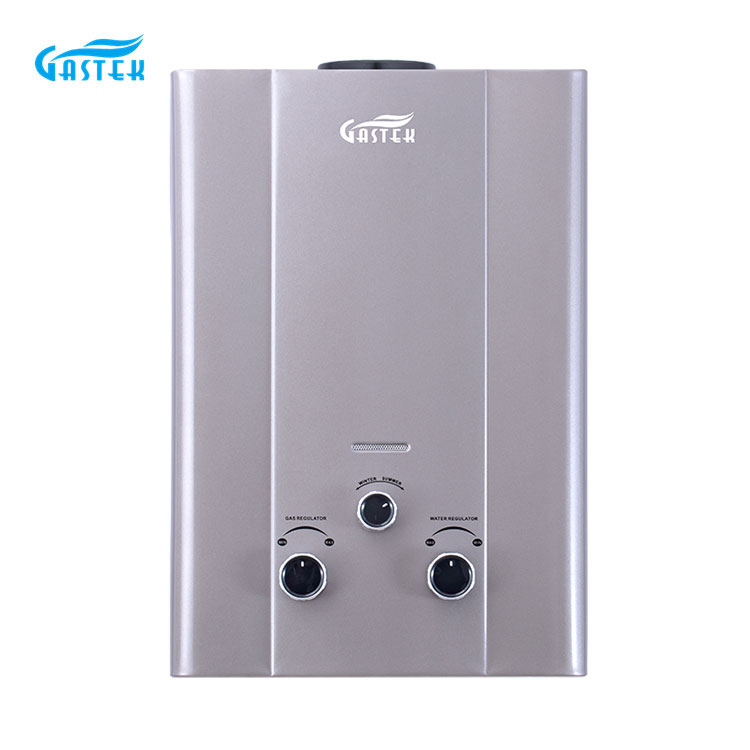

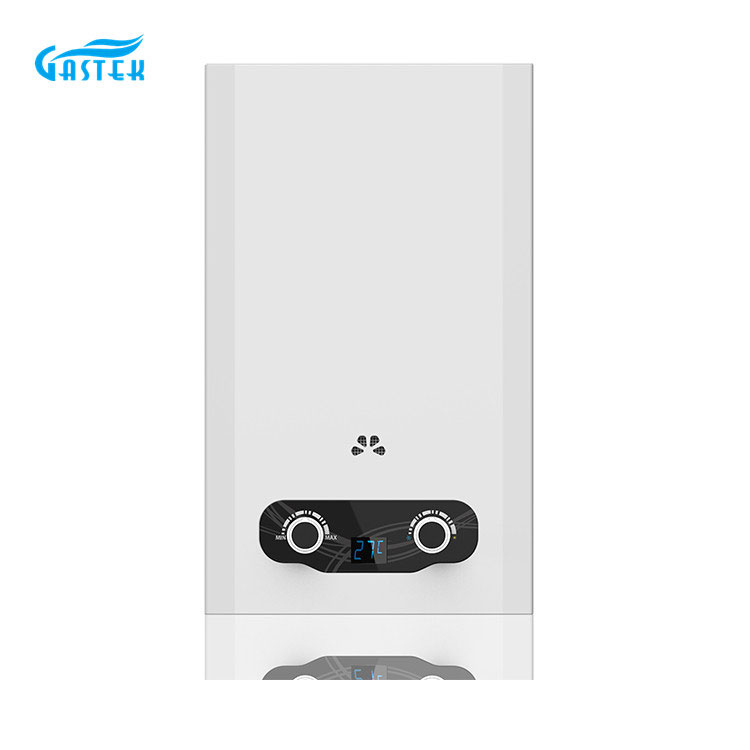

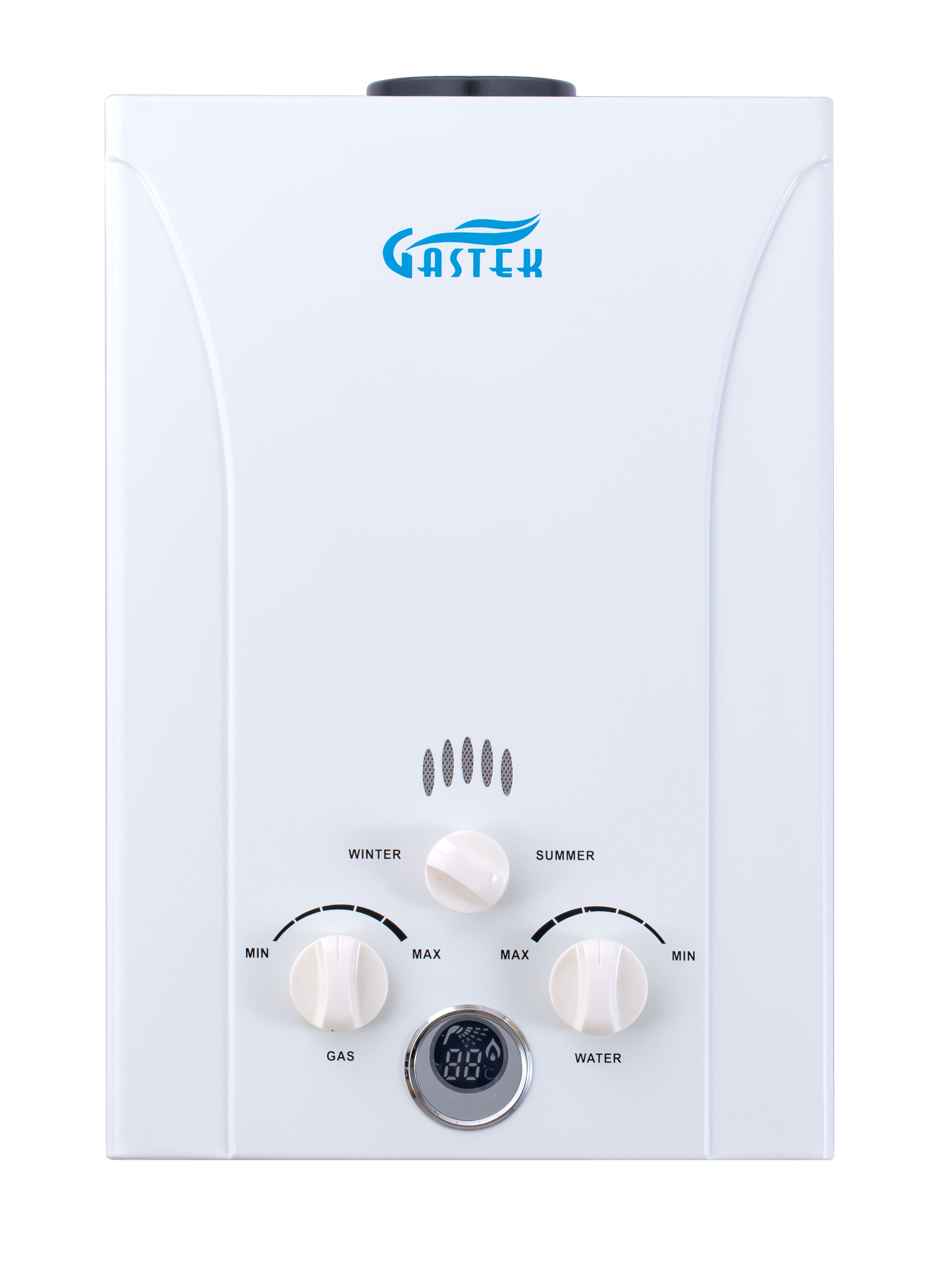

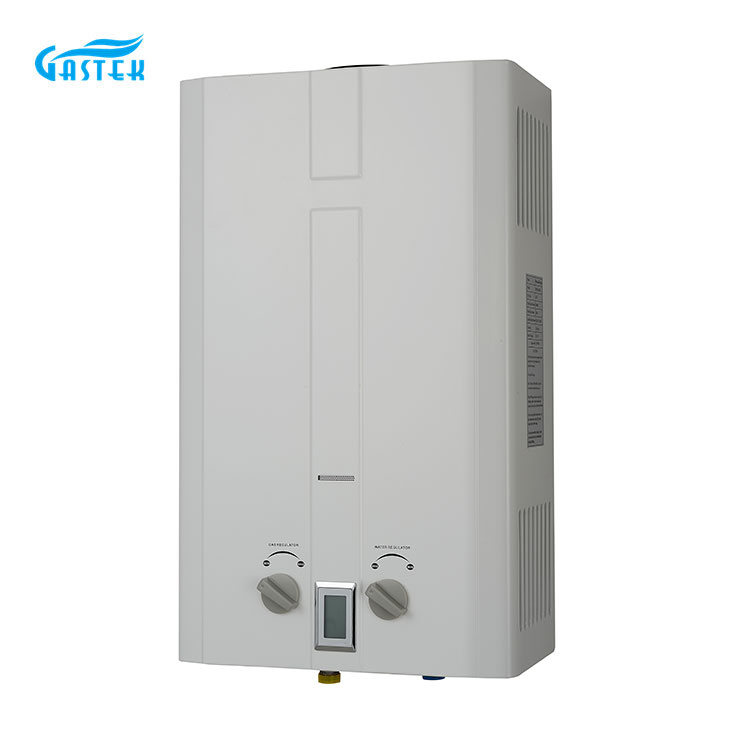

Pemanas banyu gas 10L U Series
Pemanas banyu gas jenis 10L umum iki bisa nyedhiyakake banyu panas sing tanpa teles, telas. Tembok dipasang, kanthi ukuran kompak, gampang diinstal. Kanthi perlindungan flameout, perlindungan kegagalan Ignition, perlindungan anti-pembekuan, nglindhungi pemanasan, lan sapiturute bisa njamin keamanan kulawarga.
| Aliran Banyu (L / min) △T = 25K |
5L | 6L | 8L | 10L | 12L | 14L | 16L | 18L |
| Beban sing digawe panas | 10kW | 12kW | 16kW | 20kW | 24kW | 28kW | 32kW | 36kW |
| Jinis gas | NG / LPG | |||||||
| Jinis rame | Gangguan pulsa otomatis | |||||||
| Diameteripun pipa Flue | Φ90mm | Φ90mm | Φ110mm | Φ110mm | Φ110mm | Φ130mm | Φ130mm | Φ130mm |
| Tekanan banyu sing Applied | 0.025-0.75Mpa | |||||||
| Pasokan tenaga | DC, 3V | |||||||
| Gas Inlet | G 1/2 & # 8221; | |||||||
| Inlet banyu | G 1/2 & # 8221; | |||||||
| Outlet banyu | G 1/2 & # 8221; | |||||||
| Ukuran Produksi | 440 * 300 * 138mm | 440 * 300 * 135mm | 520 * 320 * 168mm | 550 * 330 * 188mm | 610 * 350 * 188mm | 650 * 400 * 188mm | 700 * 440 * 200mm | 700 * 440 * 200mm |
| Ukuran Kemasan | 525 * 360 * 200mm | 525 * 360 * 200mm | 630 * 370 * 225mm | 635 * 395 * 245mm | 710 * 410 * 245mm | 745 * 455 * 250mm | 800 * 495 * 260mm | 800 * 495 * 260mm |
| G.Wong Wengi | 5.5kgs | 5.9kg | 7.8kgs | 9.2kgs | 10.5kgs | 13.2kgs | 15.3kgs | 16.3kg |
| Loading Kapasitas (20'GP / 40'GP / 40'HQ) |
800 pcs / 1600 pcs / 1900 pcs | 550pcs / 1100pcs / 1300pcs | 490pcs / 980pcs / 1150pcs | 420 pcs / 840 pcs / 1000 pcs | 350pcs / 700pcs / 810pcs | 280pcs / 560pcs / 650pcs | ||
1ï¼ ‰ Wide range, telas, tankless, kapasitas banyu panas cepet saka 5L-18L
2) Proteksi macem-macem, kaya pangreksan kanthi pemanasan sing luwih gedhe, Perlindhungan anti-garing, piranti pencucuhan pulsa otomatis, Perlindhungan geni, otomatis mati nalika pembakaran ora lengkap.
3) Tampilan suhu sing beda;
4) Beda knobs sing beda-beda;
5) Penyesuaian musim dingin / musim panas, supaya suhu banyu panas luwih kepenak
6) wektu 20 utawa 40 min kasedhiya
7) 2 batere didhukung
